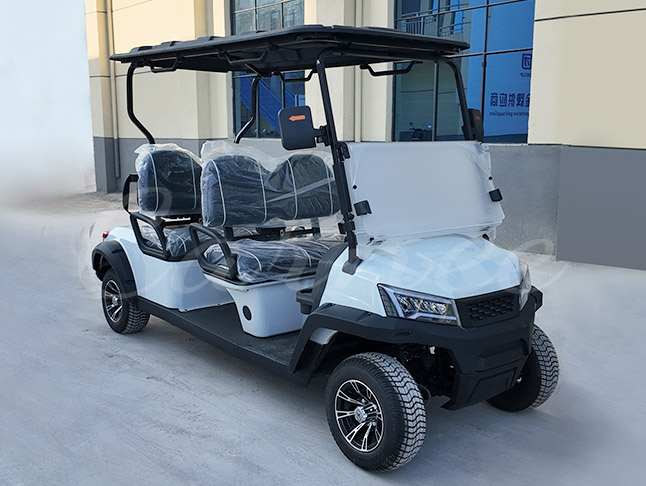

Looking for a highly efficient and eco-friendly electric golf cart? Our 4 Seater Golf Cartis the perfect choice for you! Designed for golf courses, resorts, campuses, and more, this electric golf cart offers a comfortable ride and powerful performance.
This is the product standard specification. lf you would like to customize on the shape, size, color, logo, feel free to contact us please!
| Basic Parameters | Dimensions (L×W×H mm) | 3165×1330×1900 (Non-lifted), 3165×1330×1960 (Lifted) |
| Wheelbase (mm) | 2440 mm | |
| Front/Rear Track (mm) | 920 / 980 | |
| Tire Size | 205/50-10 | |
| Rated Capacity (persons) | 4 persons | |
| Curb Weight (kg) | 490 kg | |
| Max Load Capacity (kg) | 600 kg | |
| Body Structure | Steel frame + injection-molded shell / Engineered plastic molded parts | |
| Suspension System | Front Suspension | McPherson independent suspension |
| Rear Suspension | Leaf spring non-independent suspension + Cylinder damper | |
| Braking System | Brakes | Front disc, rear drum + Hydraulic dual circuit |
| Steering System | Steering | Dual output rack and pinion steering |
| Drive System | Drive | Rear-wheel drive |
| Seats | Seat Type | Bench seats (color optional) |
| Dashboard | Dashboard | Injection-molded |
| Paint | Paint | High-quality paint + computerized color adjustment + professional spray equipment |
| Electrical System | Battery Type | Maintenance-free battery |
| Battery Model | 4-EVF-155 | |
| Battery Capacity | 8V/155Ah | |
| Battery Voltage & Capacity | 48V/155Ah (3hr) | |
| Voltage & Power (V/kW) | DC48/5 | |
| Cooling Method | Natural cooling | |
| Motor Power | 5kw AC motor | |
| Auxiliary Functions | Electromagnetic brake, automatic parking | |
| Controller | Controller Type | AC asynchronous motor controller |
| Controller Model | ACMIV48C350-S | |
| Controller Voltage (V) | 48V | |
| Max Output Current (A) | 350A | |
| DC-DC Converter | DC-DC Converter Input Voltage (V) | 48/60/72 |
| DC-DC Converter Output Voltage (V) | 13.8 | |
| DC-DC Converter Output Power (W) | 500W | |
| Performance | Maximum Speed (km/h) | 40 km/h (customizable) |
| Maximum Range (km) | 70 km (customizable) | |
| Maximum Climbing Ability (%) | ≥15% | |
| Minimum Turning Radius (m) | 4.1 m | |
| Minimum Ground Clearance (mm) | ≥120 mm | |
| Braking Distance (m) | ≤4 m (at 20 km/h initial speed) |
Carnee Rides can send engineers to help you install the amusement rides on site if you need.
No matter when there is any problem with the equipment, you can contact us for the solution or support, and we can provide 7*24 hours services.
Carnee Rides can arrange engineers to provide video guidance and help when you install the amusement rides
Carnee Rides will provide an installation manual before shipment, providing guidance throughout the process to ensure that you can work normally after receiving the goods.
As a leading manufacturer of sightseeing vehicles in China, Carnee Rides provides the best Seat Golf Cart that combines modern design, high performance, and environmental benefits, making it suitable for various settings.
Dimensions: 3165×1330×1900mm (Standard) / 3165×1330×1960mm (Lifted)
Wheelbase: 2440mm, providing stable vehicle balance
Track: Front 920mm, Rear 980mm, ensuring stability while driving
Tyre Size: 205/50-10, equipped with off-road tyres for strong grip, suitable for various terrains
Seating: Accommodates 4 passengers, spacious and comfortable, ideal for families or small groups
Curb Weight: 490kg, Maximum Load Capacity: 600kg
Battery System: Maintenance-free battery, 48V/155Ah (3 hours), with a range of up to 70km (customizable based on requirements)
Motor: 5kw AC motor, providing strong power for fast acceleration and stable operation
Maximum Speed: 40km/h (customizable), suitable for different usage scenarios
Maximum Hill Climbing Ability: 15%+, easily handles slopes
Braking System: Front disc and rear drum brakes with hydraulic dual circuit, providing strong braking power for safety
Steering System: Dual output rack and pinion steering, ensuring precise control
Minimum Turning Radius: Only 4.1m, ideal for manoeuvring in tight spaces
Seats: Leather seats, soft and comfortable for long rides without fatigue
Sunshade: Roof equipped with sun and rain protection, ensuring a comfortable experience in all weather conditions
LED Lights: High-brightness LED headlights for safer night driving; rear lights with strong penetration for enhanced visibility at night
Wide-Angle Rearview Mirrors: Offering a wider view of the rear for safe driving
High-Quality Paint: Premium paint with a professional spraying process, ensuring the vehicle remains durable and looks as shiny as new
Electromagnetic Brake: Provides a safer automatic parking function, preventing rollbacks
Control System: Equipped with a 48V AC asynchronous motor controller, ensuring efficient performance and stability
DC-DC Converter: 48V input and 13.8V output, providing stable power for onboard electronics
Golf Courses: Perfect for transporting golfers and guests around the course, including carrying golf bags with ease using the 4 seat golf cart with bag holder.
Resorts and Tourist Sites: Convenient transportation for visitors, enhancing the customer experience
Factories and Parks: Efficient employee transport and material handling
Campuses and Airports: Ideal for use in large campuses or airport grounds, providing fast and convenient transportation
Residential Communities: Eco-friendly, efficient transportation for daily use in residential areas
Eco-Friendly & Energy-Efficient: Electric drive system with zero emissions, meeting the demand for green transportation
High Performance and Durability: Made with high-quality materials to ensure long-term, efficient operation in various environments
Customizable Service: Options to customize exterior colours, seat configurations, and more to meet different customer needs
Factory Direct Sales: As a direct manufacturer, we offer more competitive pricing and excellent after-sales service
Contact us today to learn more about this product and receive a customized solution tailored to your needs!
CARNEE Rides' Electric Electric Sightseeing Car are widely used globally, including in Germany, France, the USA, Australia, Canada, the UAE, Algeria, and Kenya. These buses are commonly deployed at airports, parks, and other public spaces, offering eco-friendly and efficient transportation solutions. For example, in French airports, electric shuttle buses help passengers smoothly transfer between terminals; in Australian city parks, they provide sustainable transportation; and in Algeria and Kenya, they offer convenient short-distance travel in public areas, demonstrating the shuttle bus' flexibility and reliability in various environments.
