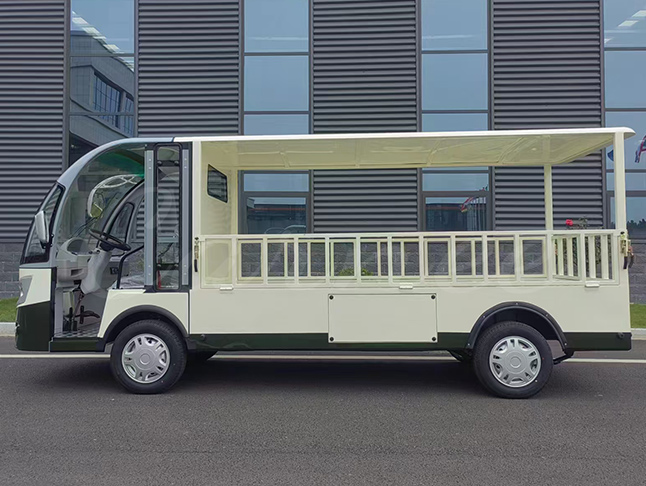

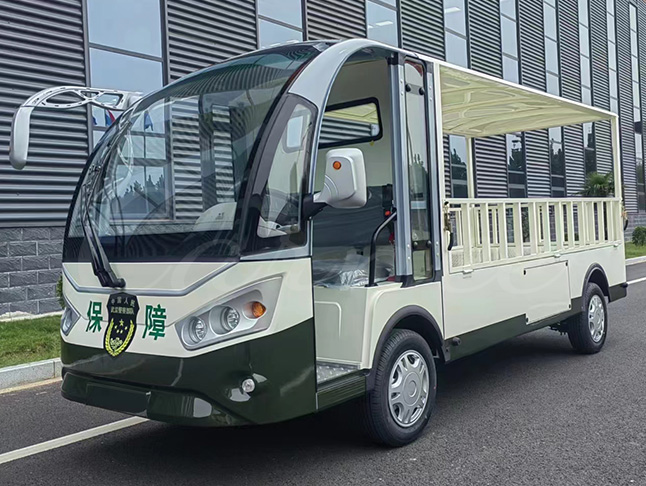

The Electric Single-Row Cargo Truck (Vehicles MC 7240) is an advanced Electric Shuttle Vehicle designed for short-distance cargo transport and urban logistics. This Electric Customized Vehicle Mc 7240 is ideal for businesses requiring efficient and sustainable transport for city deliveries, park logistics, and various goods transport needs. With its compact size and powerful electric drive system, it offers an eco-friendly, cost-effective solution for everyday operations.
This is the product standard specification. lf you would like to customize on the shape, size, color, logo, feel free to contact us please!
| Name | Description |
|---|---|
| Overall Dimensions (L×W×H) | 4700 × 1500 × 2050 mm |
| Cargo Bed Dimensions | 3200 × 1480 × 300 mm |
| Wheelbase | 2740 mm |
| Front/Rear Track | 1285 mm / 1325 mm |
| Tire Specification | 165/70R13 |
| Curb Weight | 1300 kg |
| Seating Capacity | 2 seats |
| Body Structure | Sheet metal stamped parts + aluminum frame + plastic covers |
| Front/Rear Suspension System | Front: McPherson independent suspension, Rear: Leaf spring non-independent suspension |
| Braking System | Front disc, rear drum + hydraulic dual-line + vacuum assist |
| Steering System | Dual-output steering gear + electric power assist |
| Drive System | Rear-mounted, rear-wheel drive |
| Seats | Bus-style seats with armrests / leather seats with protective railings |
| Dashboard | Injection molded material |
| Paint | High-quality paint + computer-tuned paint + professional spraying equipment |
Carnee Rides can send engineers to help you install the amusement rides on site if you need.
No matter when there is any problem with the equipment, you can contact us for the solution or support, and we can provide 7*24 hours services.
Carnee Rides can arrange engineers to provide video guidance and help when you install the amusement rides
Carnee Rides will provide an installation manual before shipment, providing guidance throughout the process to ensure that you can work normally after receiving the goods.
Compact and Efficient Design:
Measuring 4700 mm (L) × 1500 mm (W) × 2050 mm (H), this Electric Shuttle Vehicle is perfect for maneuvering through narrow streets and busy areas. Its spacious cargo bed (3200 mm × 1480 mm × 300 mm) provides ample storage space for transporting various goods.
Eco-Friendly Electric Power:
Powered by a 72V 200Ah maintenance-free battery and a 7.5KW motor, the Electric Single-Row Cargo Truck offers a top speed of 30 km/h and a range of up to 100 km. The vehicle’s electric motor ensures zero emissions, making it an ideal choice for businesses seeking environmentally friendly transport options.
Durability and Comfort:
Built with high-quality sheet metal parts, aluminum framing, and plastic covers, this Electric Customized Vehicle offers long-lasting durability and reliability. The front McPherson independent suspension and rear leaf spring suspension system provide a smooth and stable ride.
Enhanced Maneuverability:
The Electric Shuttle Vehicle features an electric power-assisted steering system, allowing for a minimum turning radius of just 5.5 meters. It can handle slopes of up to 15%, making it suitable for various terrains.
Safety and Efficiency:
Equipped with a front disc brake and rear drum brake system, hydraulic dual-line, and vacuum assist, the vehicle offers reliable braking performance with a stopping distance of less than 5 meters, ensuring safety on the road.
Comfortable Interior:
The interior includes bus-style seats with armrests or optional leather seats with protective railings. The dashboard is crafted from high-quality injection-molded material, and the vehicle features a durable, visually appealing paint finish.
Advanced Electrical System:
The Electric Customized Vehicle is powered by the MC3336-7240 AC asynchronous motor controller, providing smooth and efficient performance. Additionally, the high-efficiency DC-DC converter ensures effective power management for extended operational hours.
The Electric Single-Row Cargo Truck (Vehicles MC 7240) is an excellent choice for Electric Shuttle Vehicles, offering reliable, efficient, and environmentally friendly transport solutions. Whether used for city delivery, internal park logistics, or general cargo transport, this Electric Customized Vehicle delivers significant cost savings while contributing to a greener future.
